Phoscon - RaspBee II - The Raspberry Pi Zigbee gateway
RaspBee is a universal ZigBee gateway for Raspberry, which enables many Zigbee products to be combined. RaspBee can function without the Cloud or the internet. You keep all your data locally at home.
Presentation
RaspBee is a universal ZigBee gateway, which enables many Zigbee products to be combined. RaspBee can function without the Cloud or the internet. You keep all your data locally at home.
Its compact size means that it is ideally suited to Raspberry Pi.
Compatibility
The Phoscon RaspBee is compatible with a large range of lighting systems, switches and sensors by Philips Hue, IKEA TRÅDFRI, Xiaomi Aqara, OSRAM SMART+, Busch-Jaeger, GIRA, JUNG, Paulmann and Paul Neuhaus.
Functions without the Cloud
No subscription is required. The devices can be controlled locally, without the need for the Internet. All the data, such as the status of the lights, sensors and switches, remain at home, with you.
Independent platform

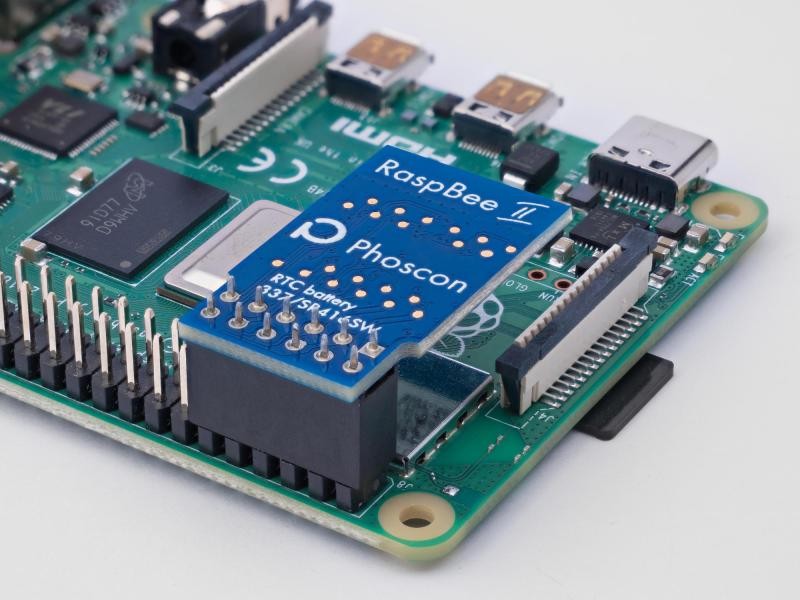

The RaspBee transforms your Raspberry Pi into universal Zigbee controller.
By using the Phoscon App's backup function, a Zigbee installation can be transferred to a new system.
Home automation systems
The RaspBee has been integrated into the most popular smart home systems by the community (OpenHab, Jeedomus, Domoticz, Home Assistant, FHEM, Node-RED, and so on).
This powerful integration results in very attractive automation solutions and functions. For example, any Zigbee device can be used with HomeKit using Homebridge-hue.
Signal range
Its power amplifier provides the RaspBee with an exceptional range. Depending on the type of construction, two to three rooms or floors can be connected.
Functions
- Zigbee controller
- Combines the Zigbee peripheral devices of many manufacturers
- Cloud-free solution
- Long range thanks to the signal amplifier
- Works with the most popular home automation systems
- Compatibility: Zigbee Home Automation, Zigbee Light Link, Zigbee 3.0
- Operating systems used: Raspbian and Docker
Technical features
- Radio Module: deRFmega256-23M12
- Nominal voltage: DC 5.0 V
- Maximum transmission power: 10 mW
- Signal range: 200m in direct visibility
- Radio frequency: 2.4 GHz
- Radio standard: IEEE 820.15.4 / Zigbee
- Flash drive: 256 Kb
- Storage temperature: -20° C to 55° C
- Operating temperature: -20° C to 55° C
- Operating systems: Raspbian, Docker
- size: 48 mm × 16.5 mm × 12 mm
Specifications
Type | Accessory Gateways/Antennas |
---|---|
Protocol | Zigbee |
-
