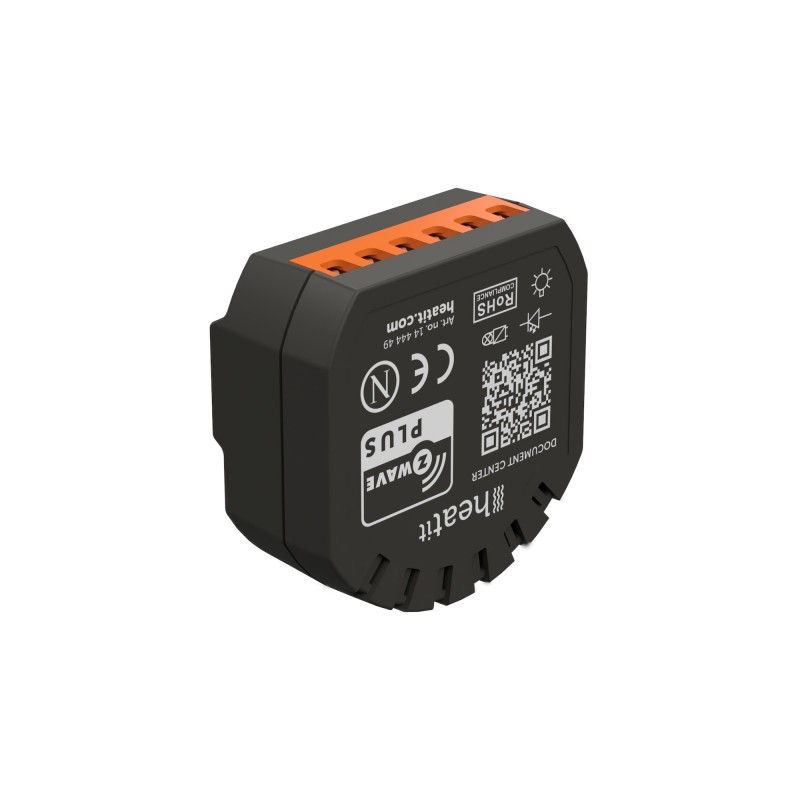

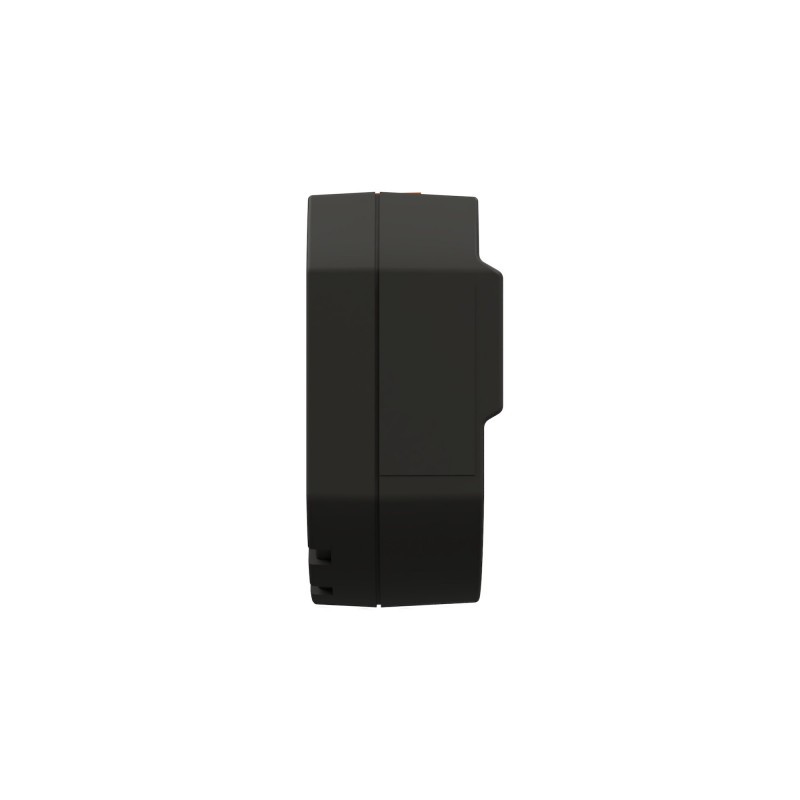

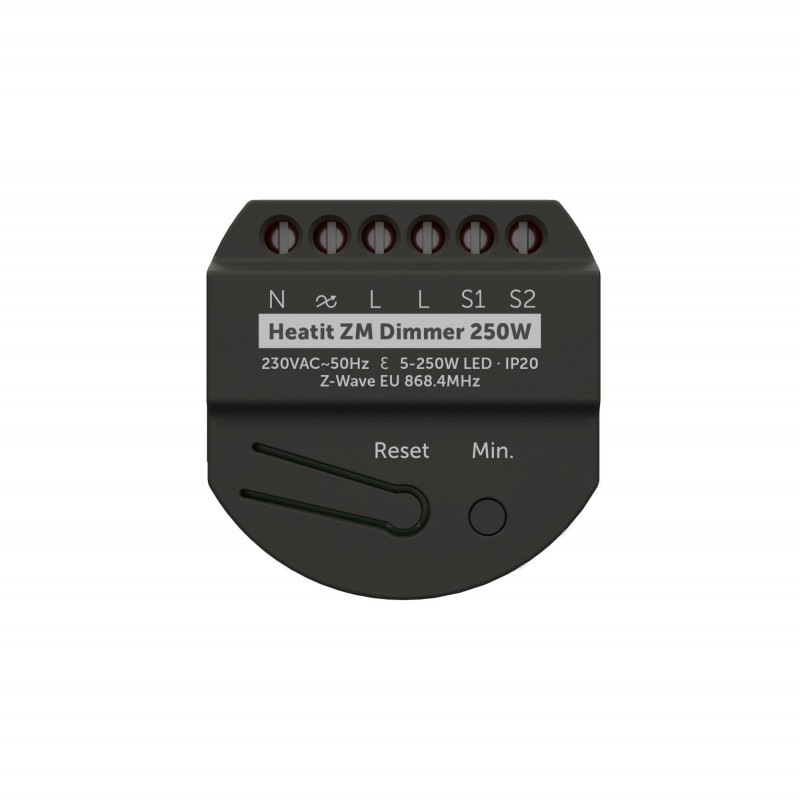

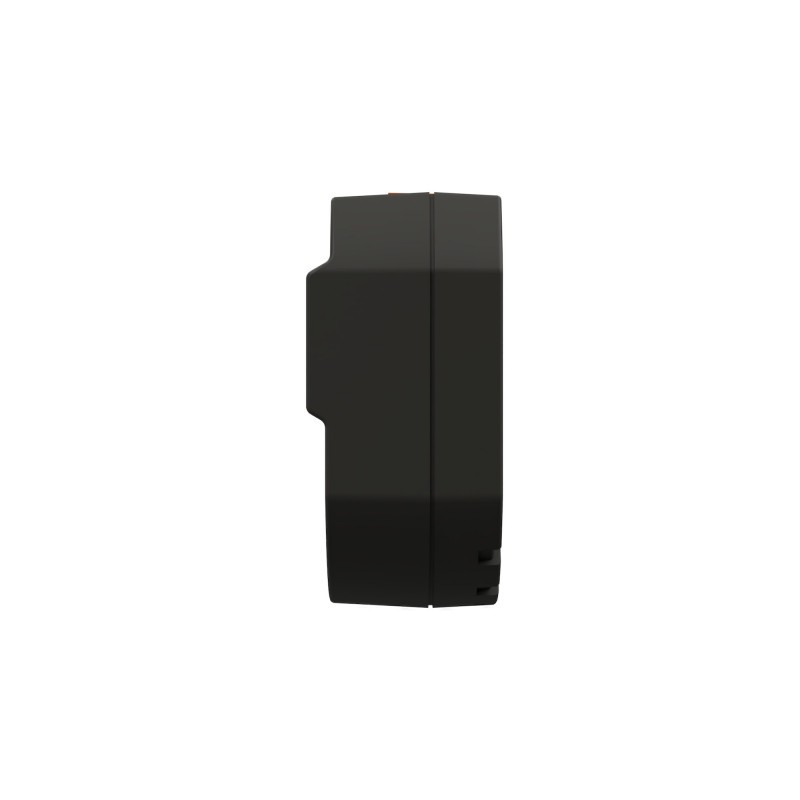

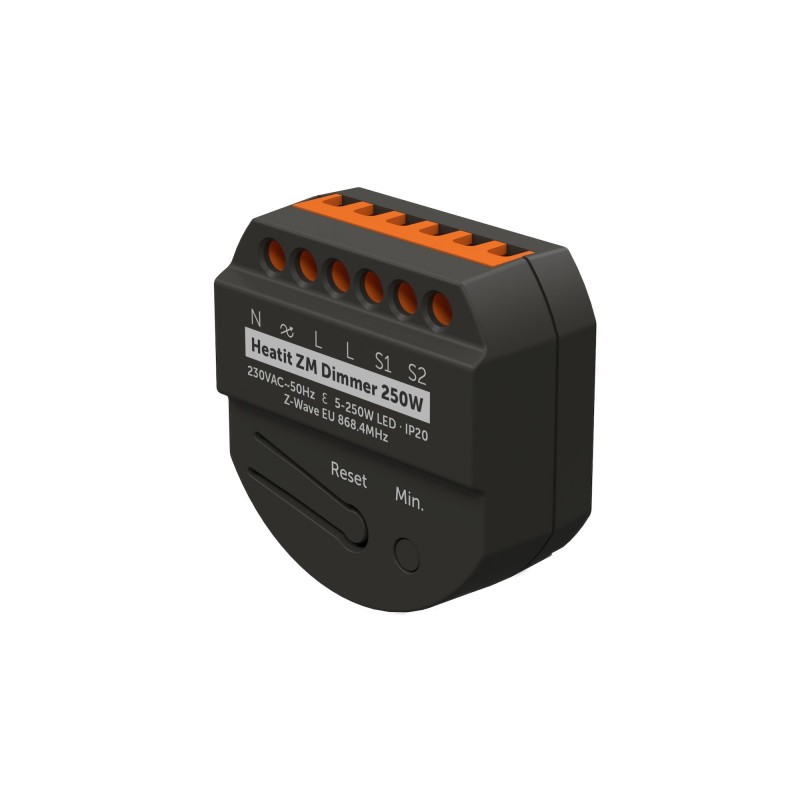

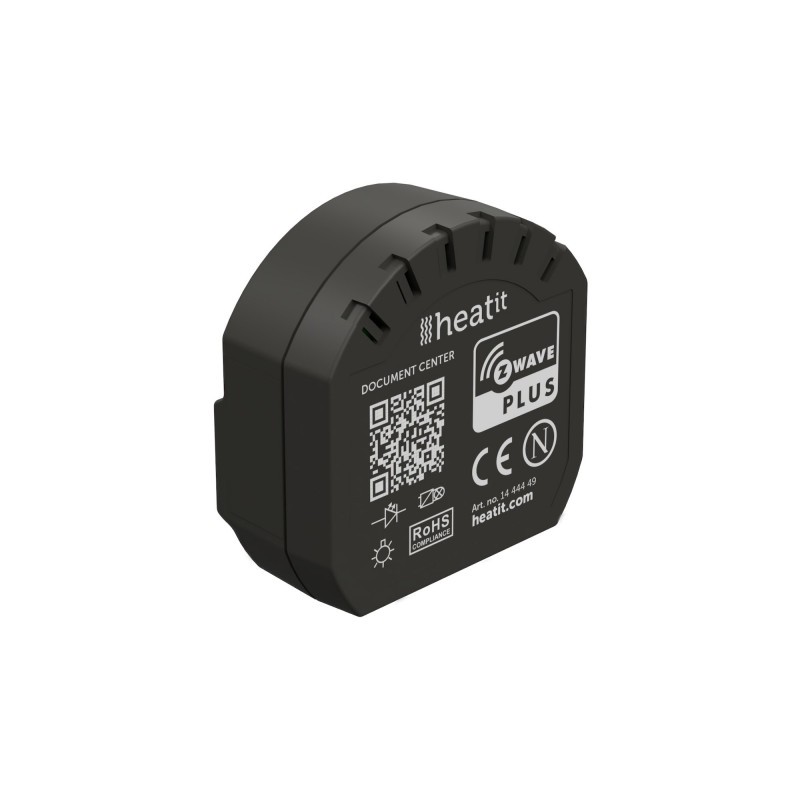

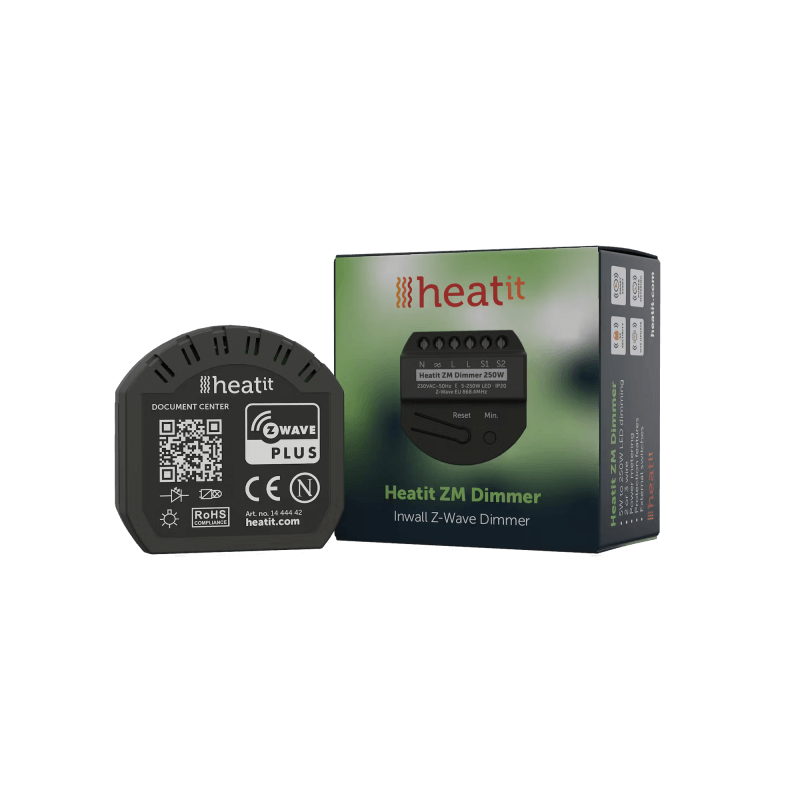

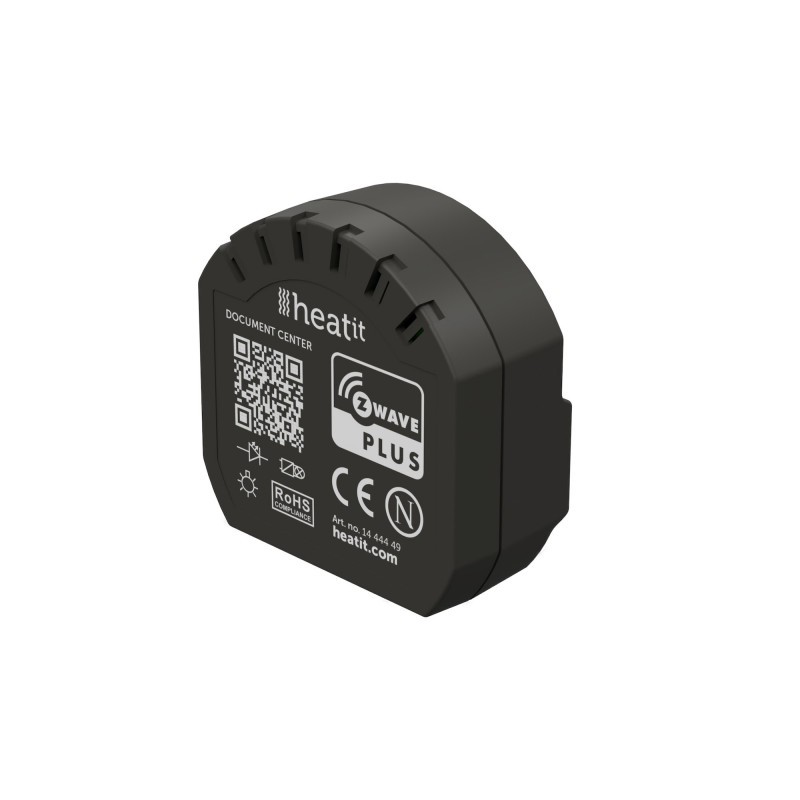

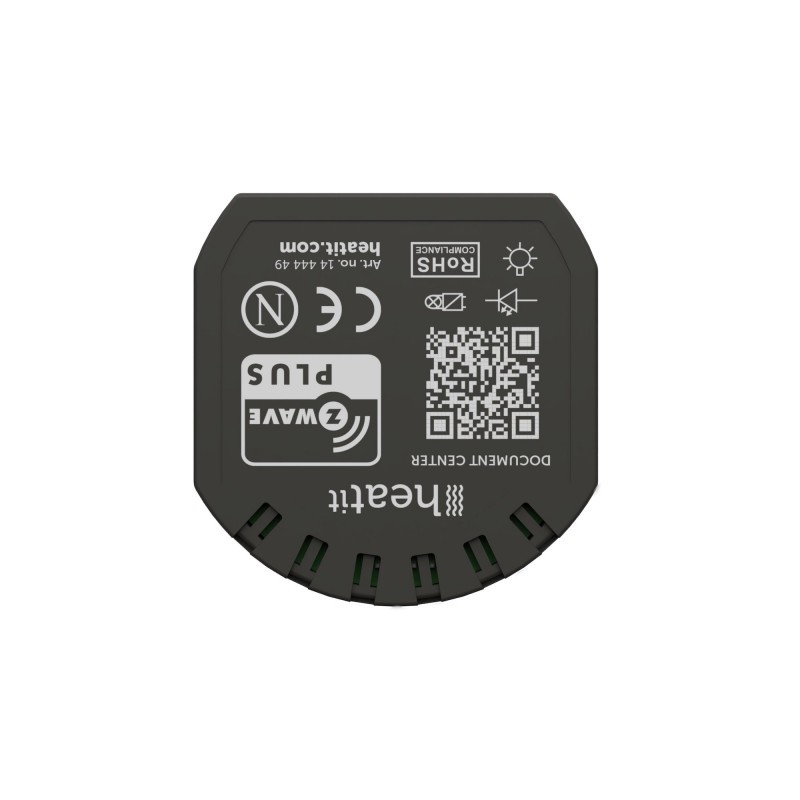

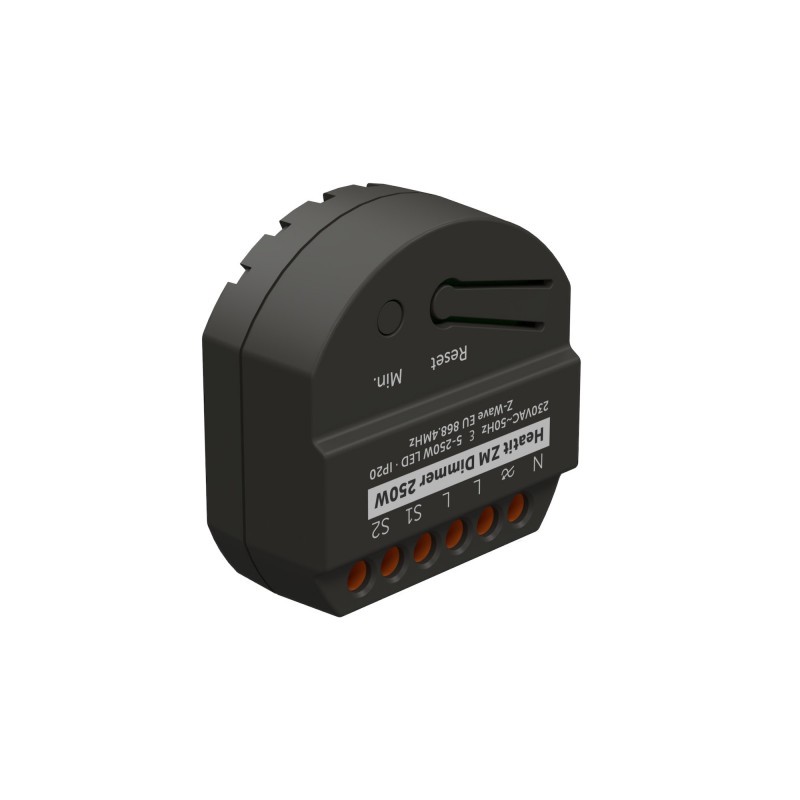

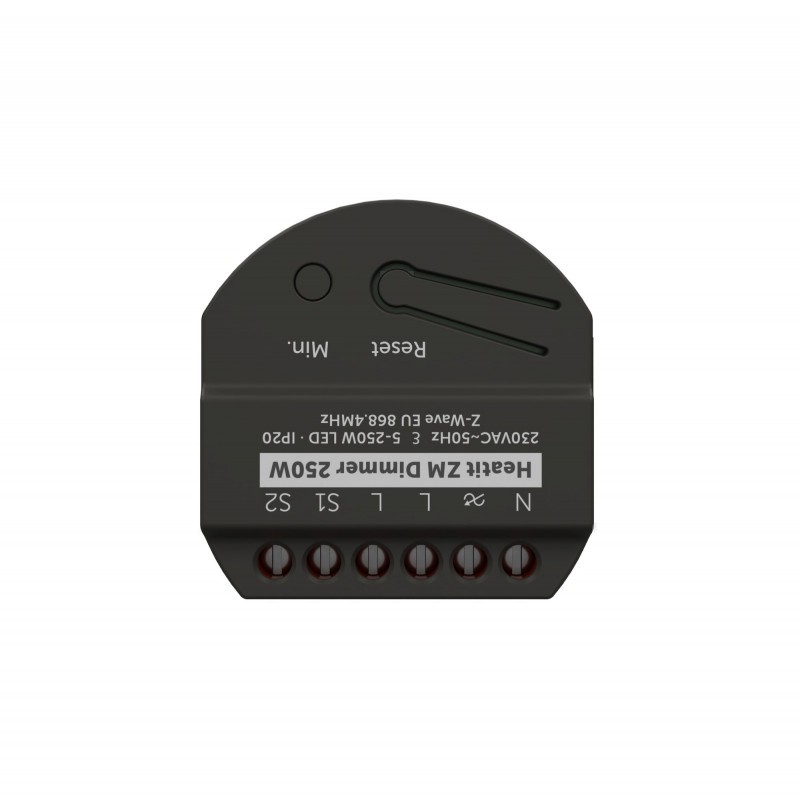

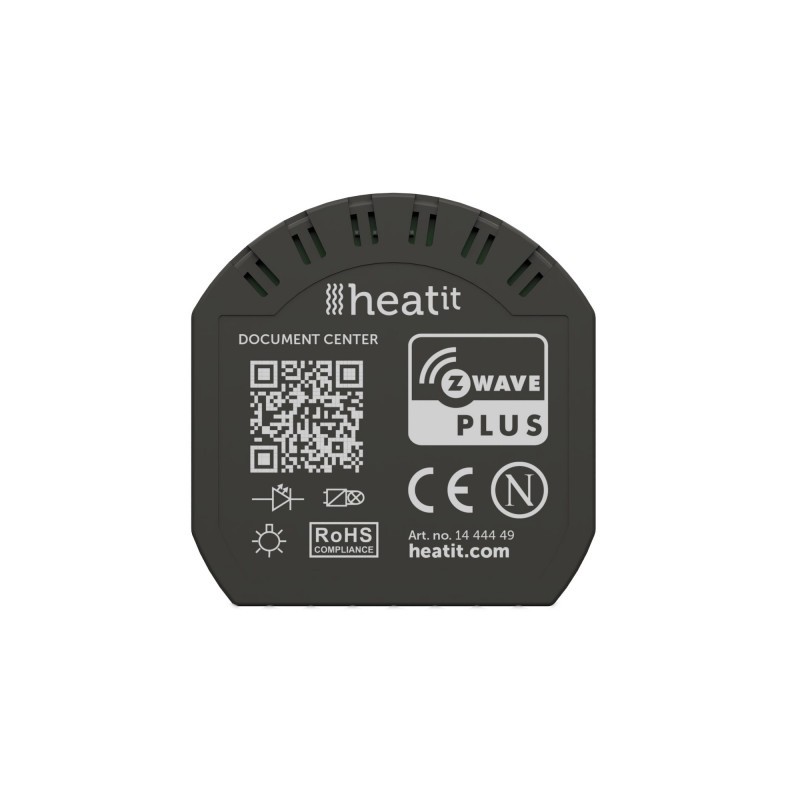

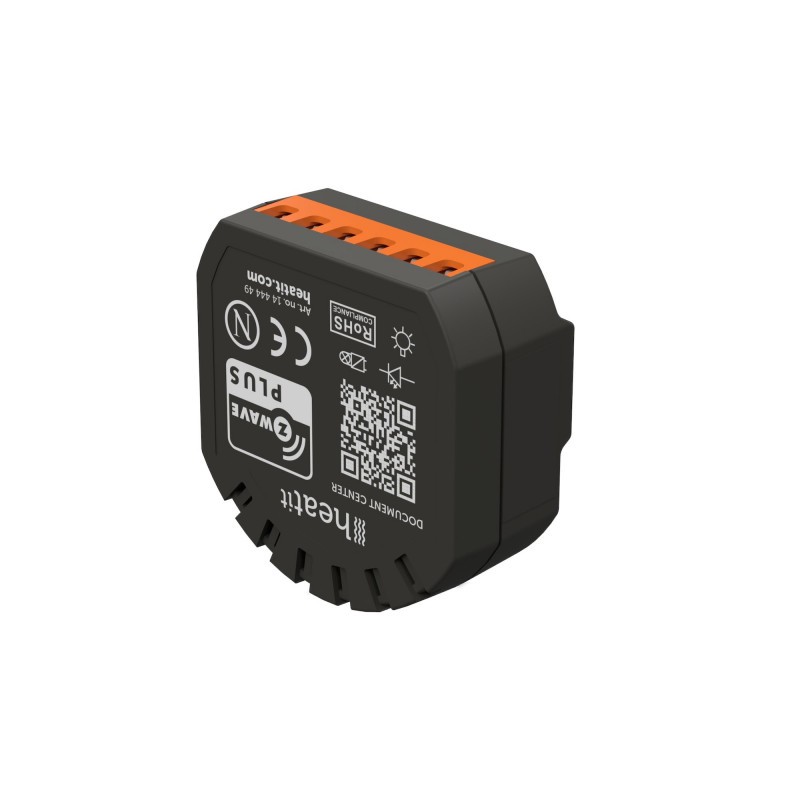

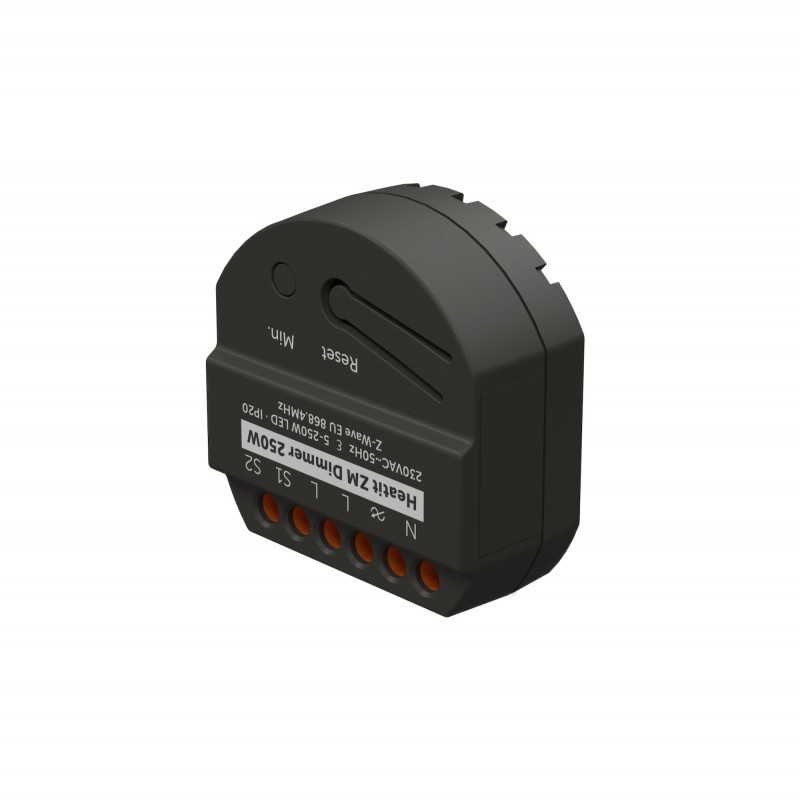

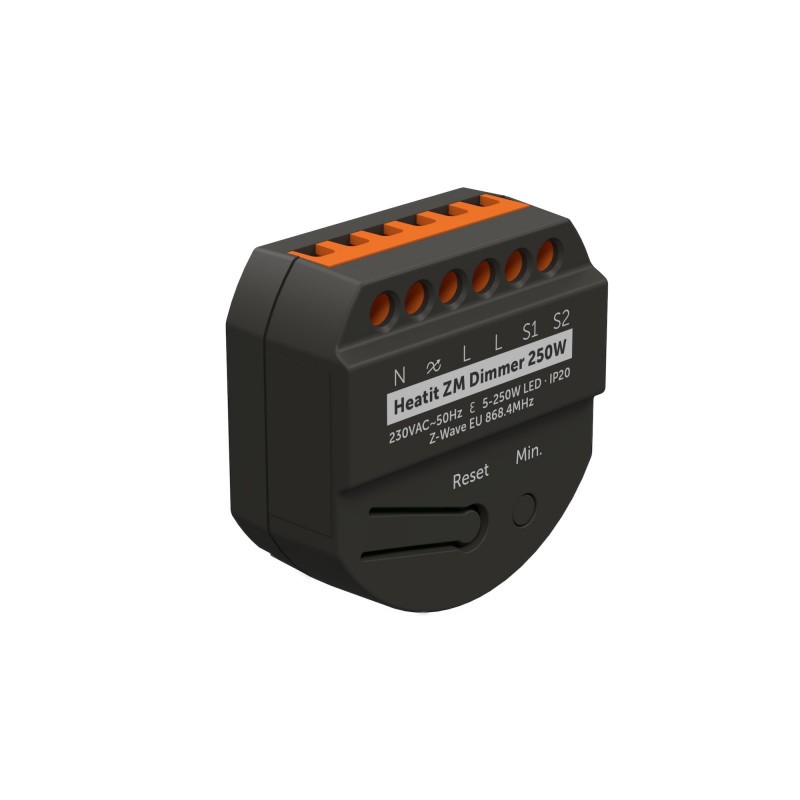

Heatit Controls - 250W Z-Wave+ 800 ZM Dimmer Module
New
CHF45.00
Tax included
The Heatit ZM Dimmer is a flush-mounted dimmer designed for installation in European wall-mounted electrical boxes.
In stock. Ordered before 5pm, delivered the next business day.
The Heatit ZM Dimmer is a flush-mounted dimmer designed for installation in European wall-mounted electrical boxes. The dimmer allows the user to control light sources from the Z-Wave network and/or an external switch.
The Heatit ZM Dimmer works on most low-load LEDs and other luminaires without causing flicker.
The dimmer can be connected to two external switches that can be used to control lights, associated devices and scenes.
The Heatit ZM Dimmer features power metering and gives you real-time information about your energy consumption.
FUNCTIONS :
- Z-Wave dimmer for flush-mounted installations
- Works in a 2 or 3 wire system
- LED compatible from 5W - 250W
- SmartStart technology
- Scene controller
- Firmware update (OTA)
- Power measurement
- Overload protection
- Short circuit protection
- Overvoltage protection
- Overtemperature protection
- Two inputs for external switches
- Adjustable minimum brightness level
- Automatic calibration of maximum brightness level
- On/off function
- Supports encryption mode S0, authenticated class S2, non-authenticated class S2
TECHNICAL SPECIFICATIONS :
- Protocol: Z-Wave Plus, 868.4 MHz
- Chip: Z-Wave 800 chip
- Rated voltage: 230V 50/60Hz
- Power range: 5W - 250W
- Power consumption: <1 W
- Ambient temperature: 5°C to 40°C
- RF range: up to 50 metres (depending on environment)
- IP class: IP21
- Dimensions: 46 x 45 x 21 mm
- Approvals: Z-Wave Plus V2, CE, Nemko
-
