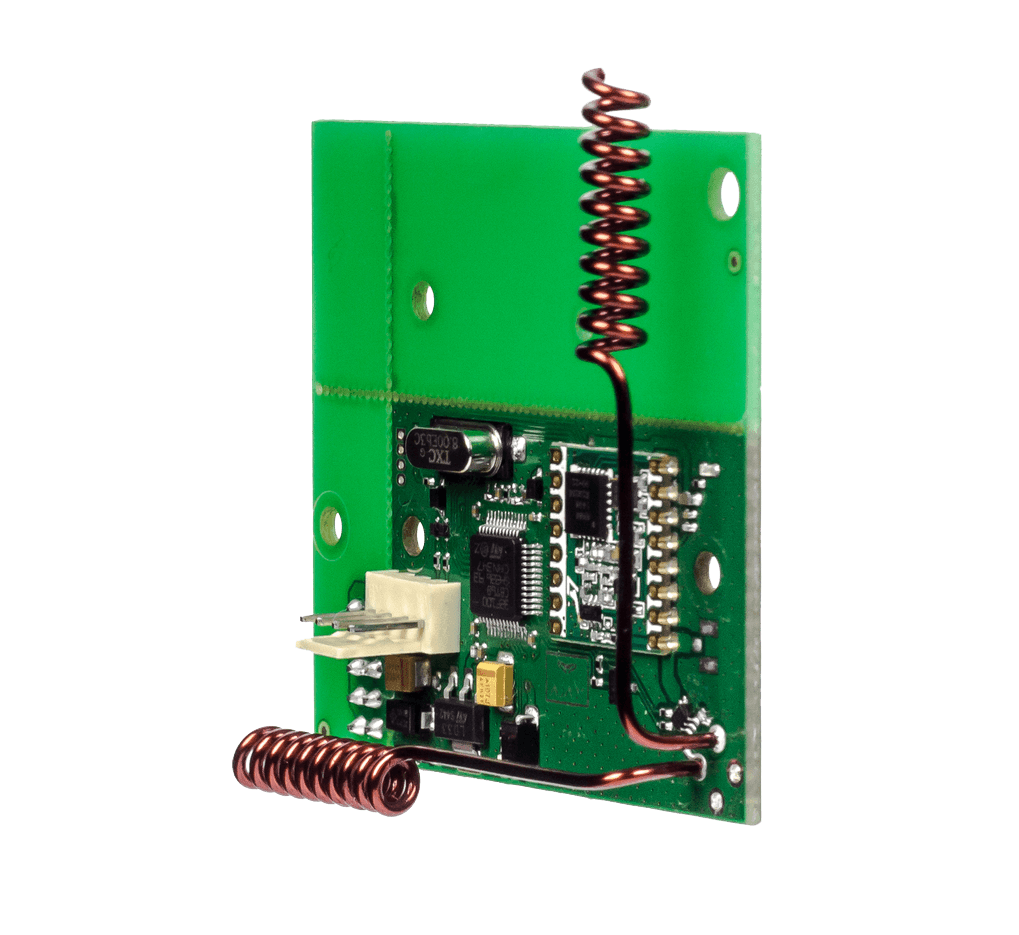

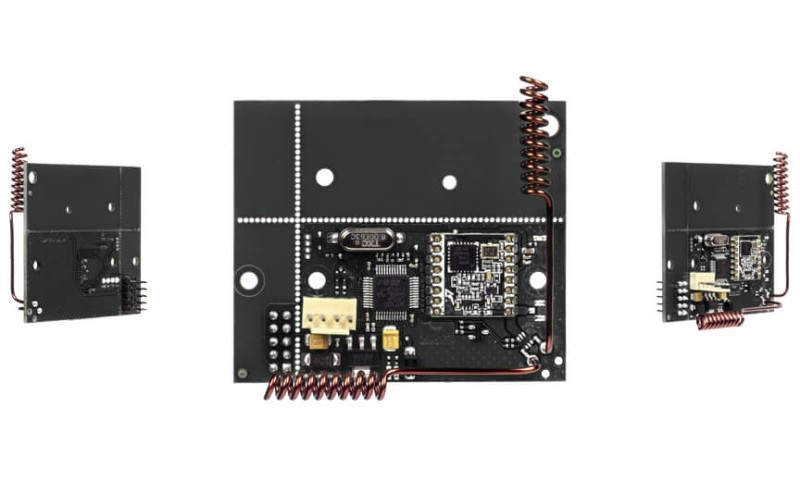

Ajax - Module for Ajax device integration with third-party wireless security and smart home systems (Ajax uartBridge)

The receiver module for connecting Ajax detectors to wireless security systems and smart home solutions.

Principle of operation

When the detector activates, the device sends the information to the central unit, which raises an alarm.

Features

The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas.

Installation and set up

The device is installed into the body of the wired central units and hubs of smart home systems.

Tech specs

• Classification: Receiver of wireless detectors' signal
• Device type: Wireless
• Installation method: Indoors
• Compatibility: Wired security systems and smart home systems
• Maximum number of detectors: 85
• Supported devices:
  • MotionProtect
  • MotionProtect Plus
  • CombiProtect
  • DoorProtect
  • FireProtect
  • FireProtect Plus
  • LeaksProtect
  • SpaceControl
  • GlassProtect
• Alarm signal delivery time: 0.15 s
• Power supply voltage: 5 V DC
• Operating temperature range: From –10°С to +40°С
• Permissible humidity: Up to 90%
• Anti-sabotage:
  • Protection against fraud
  • Jamming detection
• Interface: UART
• Dimensions: 64 × 55 × 13 mm
• Weight: 32 g
• Certification: CE
• Warranty: Replacement and repair within 24 months of the date of sale

Jeweller radio technology:

• Communication range with detectors — up to 2,000 m in an open space
• Two-way communication with detectors
• Operating frequencies — 868.0 - 868.6 MHz
• Self-adjusting RF output power — up to 25 mW
• Block encryption based on AES algorithm
• Device polling period — 12 - 300 s

Complete set: uartBridge
