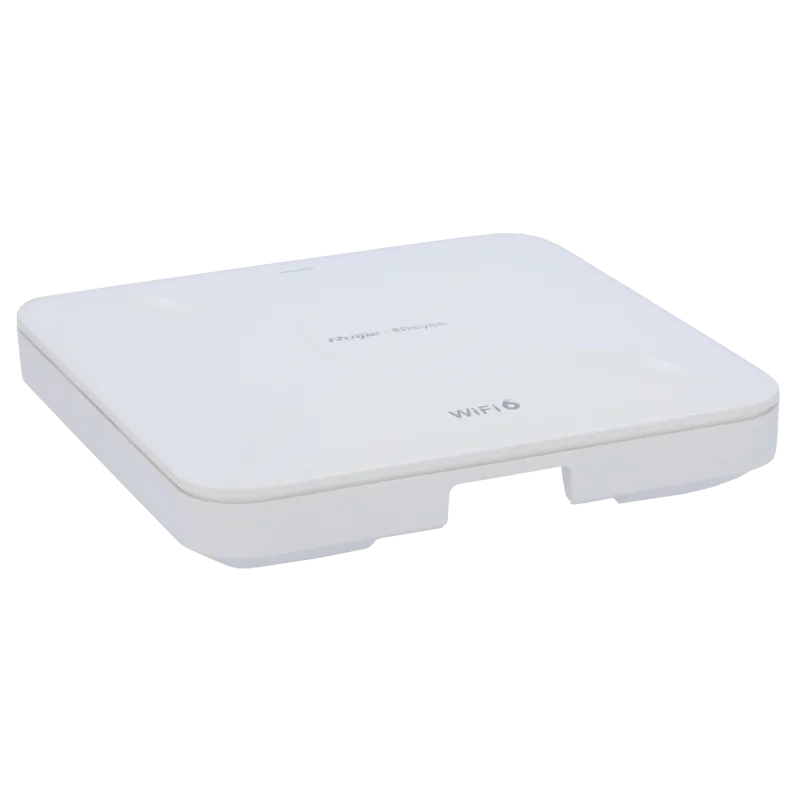

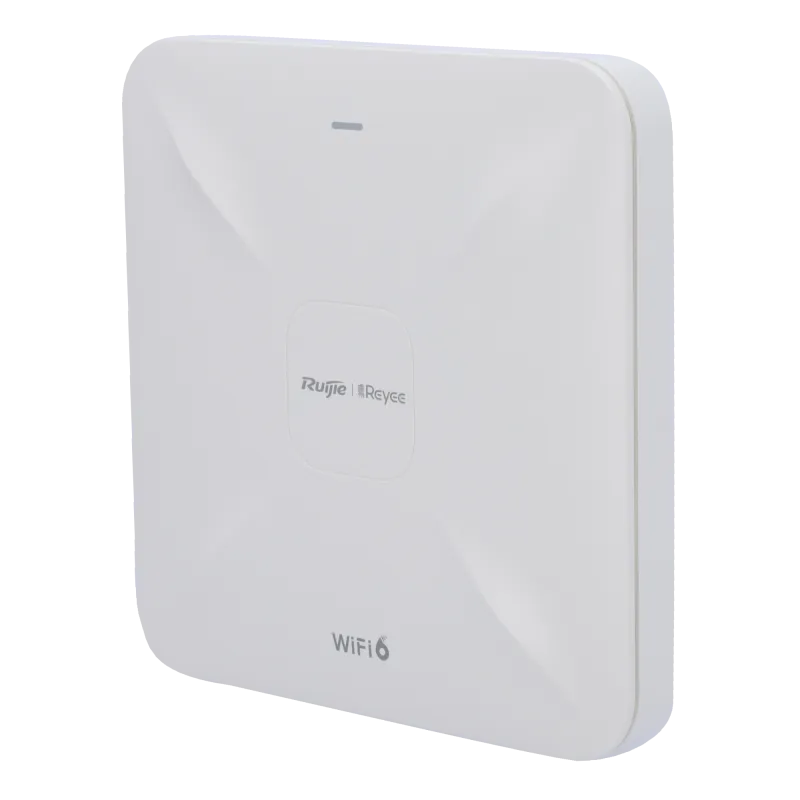

Reyee - WiFi 6 Dual-Band AX1800 Access Point RG-RAP2260G
New
CHF201.00
Tax included
- Reyee
- Omnidirectional Wi-Fi 6 AP
- 2.4 and 5 GHz frequency
- Supports 802.11a/b/g/n/ac/ax
- Transmission speed up to 1775 Mbps
- 2x2 MIMO antenna
In the process of replenishment
Reyee RG-RAP2260G WiFi 6 Access Point
Overview
The Reyee RG-RAP2260G is a high-performance WiFi 6 access point designed for professional environments. Compatible with the latest WiFi standards, it offers combined speeds of up to 1775 Mbps on 2.4 GHz and 5 GHz bands.
Key Features
- Dual-band WiFi 6 (802.11ax) with backward compatibility
- Total throughput up to 1775 Mbps (574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz)
- 2x2 MIMO technology with integrated 3 dBi antennas
- Support for up to 8 SSIDs
- PoE+ or power adapter supply
- Compatible with Reyee AP mesh system
Technical Specifications
| Brand | Reyee |
| Wireless Standard | WiFi 6 802.11AX |
| Frequencies | 2.4 GHz and 5GHz |
| 2.4GHz Performance | Up to 574 Mbps |
| 5GHz Performance | Up to 1201 Mbps |
| Maximum Transmission Power | 20 dB |
| Maximum Sensitivity | -88 dBm@MCS0 |
| Built-in Antenna | 2x2 Internal MIMO antennas for 2.4 GHz (3dBi) and 5 GHz (3dBi) |
| SSID | Up to 8 |
| Operating Modes | Wireless Access Point Basic Routing Functions Compatible with Reyee AP Mesh |
| Security | WPA / WPA2 (AES) / WPA-PSK |
| Management | Configuration via web interface or remote management with Ruijie cloud application |
| Interface | 2 Base-T 10/100/1000Mbps Ports |
| Power Supply | PoE+ 802.3at 15.3W DC 12V/1.5A |
| Operating Temperature | 0°C ~ 40°C |
| Dimensions | 194 x 194 x 35 mm |
| Weight | 560 g |
Specifications
| 10/100/1000Base-T ports | 2 |
|---|---|
| SFP ports | 0 |
| PoE/PoE+ ports | 0 |
| Max. power consumption | 16 W |
| WiFi standard | Wi-Fi 6 (802.11ax) |
| Max Wifi clients | 512 |
| Recommended Wifi clients | 100 |
| Power supply | 12 V DC Power Adapter, 1,5 A IEEE 802.3at PoE |
| Wireless Data Rates | 1775Mbps |
| Cloud-Management | Yes |
| Outdoor use | no |
