Reyee - WiFi 6 Dual-Band 3200Mbps Access Point RG-RAP2260(E)
New
CHF293.00
Tax included
- Reyee
- High Density Omnidirectional Wi-Fi 6 Access Point
- 2.4 and 5 GHz Frequency
- Supports 802.11a/b/g/n/ac/ax
- Transmission speed up to 3200 Mbps
- 4x4:4 MIMO antennas at 2.4GHz, 4x4:4 at 5GHz
In stock. Ordered before 5pm, delivered on the next business day

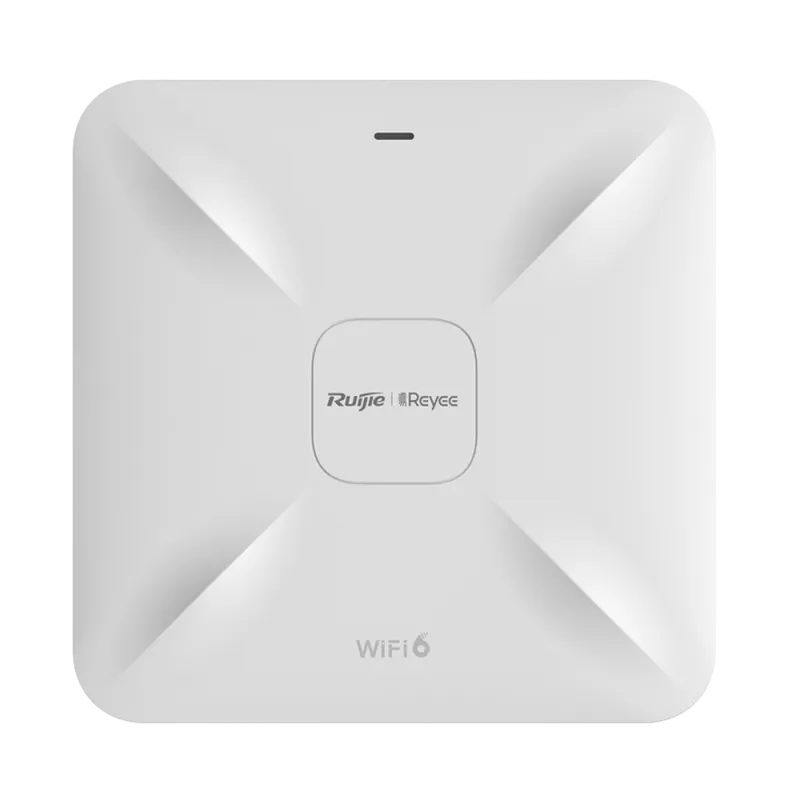

Wifi 6 Access Point Reyee RG-RAP2260(E)
Overview
The Reyee RG-RAP2260(E) access point is a professional Wifi 6 solution offering exceptional performance. Compatible with 802.11a/b/g/n/ac/ax standards, it can achieve combined speeds of up to 3200 Mbps on 2.4 GHz and 5 GHz bands.
Key Points
- Latest generation Wifi 6 (802.11AX) technology
- Simultaneous dual-band 2.4 GHz (800 Mbps) and 5 GHz (2402 Mbps)
- Integrated 4x4 MIMO antenna system
- Support for up to 8 SSIDs
- PoE+ power or 12V adapter
- Mesh compatible with other Reyee access points
- Management via web interface or Ruijie cloud application
Technical Specifications
| Brand | Reyee |
| Wireless Standard | Wi-Fi 6 802.11AX |
| Frequencies | 2.4 GHz and 5GHz |
| 2.4GHz Performance | Up to 800 Mbps |
| 5GHz Performance | Up to 2402 Mbps |
| Maximum Transmission Power | 23 dB |
| Maximum Sensitivity | -88 dBm@MCS0 |
| Built-in Antenna | 4x4 Internal MIMO Antennas in 2.4 GHz (3dBi) and 5 GHz (3dBi) |
| SSID | Up to 8 |
| Operating Modes | Wireless Access Point Basic Routing Functions Compatible with Reyee AP Mesh |
| Security | WPA / WPA2 (AES) / WPA-PSK |
| Management | Configuration via web interface or remote management with Ruijie cloud application |

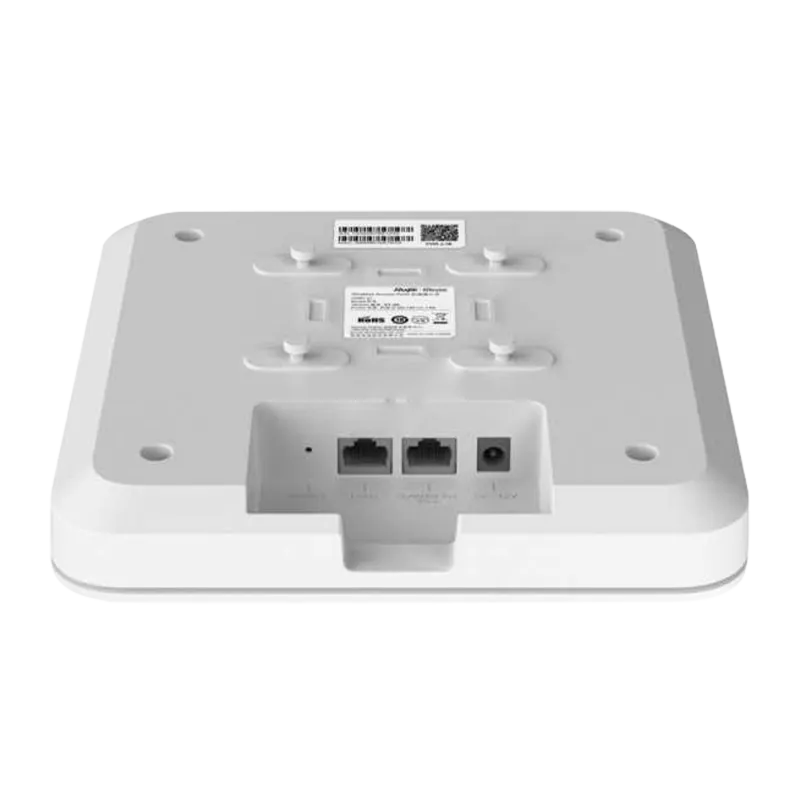

| Interface | 1 Base-T 10/100/1000 Mbps Port + 1 Base-T 10/100/1000/2500 Mbps Port |
| Power Supply | PoE 802.3at 25.4W DC 12V/1.5A |
| Operating Temperature | 0°C ~ 40°C |
| Dimensions | 220 x 220 x 35 mm |
| Weight | 1005 g |
Specifications
| 10/100/1000Base-T ports | 1 |
|---|---|
| SFP ports | 0 |
| PoE/PoE+ ports | 0 |
| Max. power consumption | 25,4 W |
| WiFi standard | Wi-Fi 6 (802.11ax) |
| Max Wifi clients | 512 |
| Recommended Wifi clients | 120 |
| Power supply | 12 V DC Power Adapter, 2,5 A IEEE 802.3at PoE |
| Wireless Data Rates | 3202 Mbps |
| Cloud-Management | Yes |
| Outdoor use | no |
