Reyee - Dual-Band 2.4/5GHz AC WLAN Access Point 1267Mbps RG-RAP1200(P)
New
CHF116.00
Tax included
- Reyee
- Wall-mounted omnidirectional Wi-Fi AP 5
- 2.4 and 5 GHz frequency
- Transmission speed up to 1267 Mbps
- Built-in 4-port Gigabit switch
- Mechanism box installation

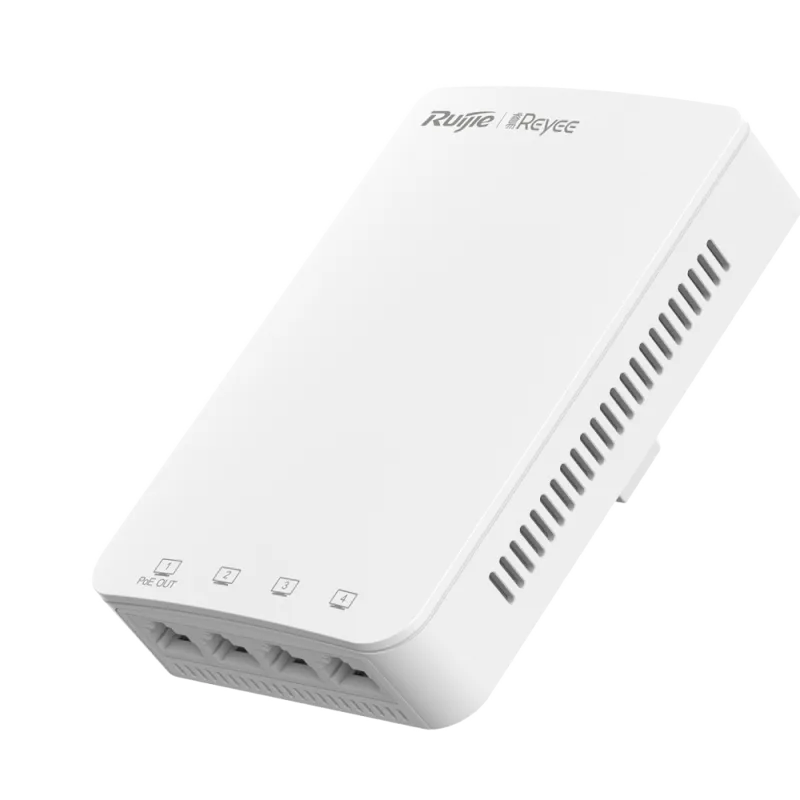

Reyee RG-RAP1200(P) WiFi Access Point
The Reyee RG-RAP1200(P) WiFi access point is a professional dual-band solution offering exceptional performance for wireless networks. Compatible with the latest WiFi standards, it can achieve combined speeds of up to 1267 Mbps thanks to its simultaneous 2.4 GHz and 5 GHz dual-band technology.
Key Points
- Simultaneous 2.4 GHz and 5 GHz dual-band
- Combined speed up to 1267 Mbps
- Built-in 4-port Gigabit switch
- 2x2 MIMO technology with omnidirectional antennas
- Support for up to 8 SSIDs
- Easy installation in mechanical box
- Free Ruijie cloud management
- PoE power supply (IEEE 802.3af)
Technical Specifications
| Brand | Reyee |

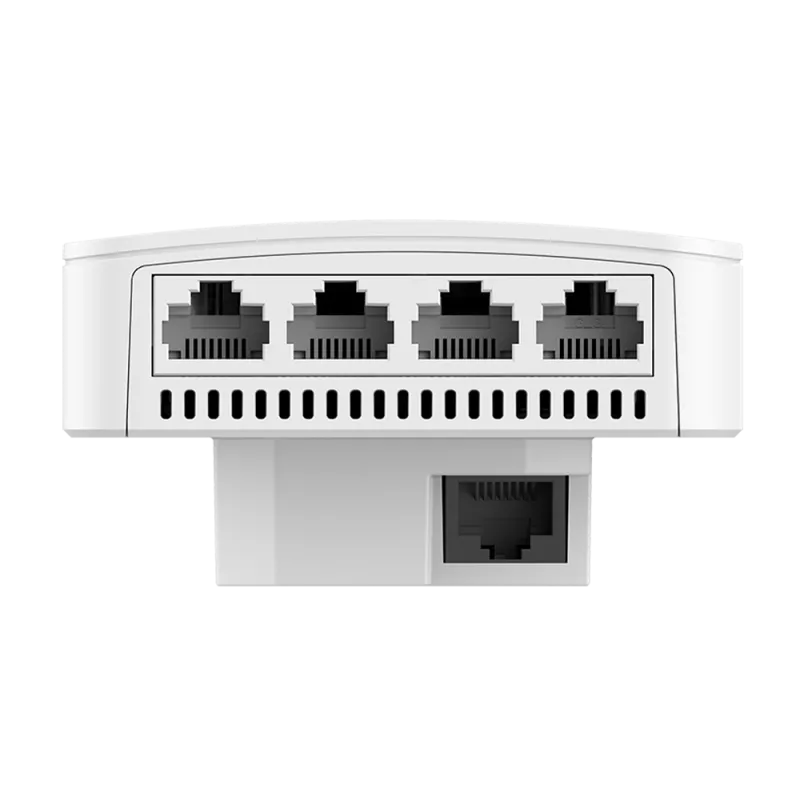

| Ports | 4 RJ45 10/100/1000 Mbps + Rear Uplink 1 RJ45 Gigabit |
| Wireless Standard | WiFi AC (802.11ac) |
| Frequencies | 2.4 GHz and 5GHz |
| 2.4GHz Performance | Up to 400 Mbps |
| 5GHz Performance | Up to 867 Mbps |
| Maximum Transmission Power | 20 dB adjustable |
| Maximum Sensitivity | -92.5dBm@MCS0 |
| Built-in Antenna | 2x2 Internal MIMO omnidirectional antennas at 2.4 GHz and 5 GHz |
| Operating Modes | Wireless Access Point Basic Routing Functions Compatible with Reyee AP Mesh |
| Security | WPA / WPA2 (AES) / WPA-PSK |
| SSIDs | Up to 8 |
| Management | Configuration via web interface or remotely with Ruijie cloud application |
| Downlink Interface | 1 Rear Uplink 1 RJ45 10/100/1000 Mbps PoE In 4 Downlink RJ45 10/100/1000 Mbps (1 with PoE output) |
| Installation | Mechanism box |
| Power Supply | PoE IEE802.3af 8W / 23.4W if PoE output port is used |
| Operating Temperature | 0 °C ~ 40 °C |
| Dimensions | 126 x 86 x 50 mm |
| Weight | 240 g |
Specifications
| 10/100/1000Base-T ports | 5 |
|---|---|
| SFP ports | 0 |
| PoE/PoE+ ports | 1 |
| Max. power consumption | 8 W 23,4 W |
| WiFi standard | Wi-Fi 5 (802.11ac) |
| Max Wifi clients | 110 |
| Recommended Wifi clients | 80 |
| Power supply | IEEE 802.3at/af PoE |
| Wireless Data Rates | 1267 Mbps |
| Cloud-Management | Yes |
| Outdoor use | no |
